• 2 functions in 1 product
• Ceramic diffuser assures the best diffusing effect.
• Clear bubble reading provides accurate CO2 dosing.
• Made with acrylic assures long usage time.
• Compact size, easy assembling.

Features :

• Top quality ceramic assures the best diffusing effect.
• 2 in 1 functions of CO2 bubble counter and diffuser.
• Easy for ceramic replacement, cleaning and water filling.
• Acrylic material provides clear CO2 bubble reading and to be acid and breakage endured.
• CO2 pipe holder included to prevent CO2 pipe bending.

How to use :

• Loose the cap, take out the ceramic then fill up the reservoir with clear water then put back the ceramic and fasten the cap firmly.
• Connect the CO2 pipe to the CO2 inlet.
• Place the CO2 pipe holder below to the diffuser and secure the CO2 pipe to the CO2 pipe holder.

Specifications

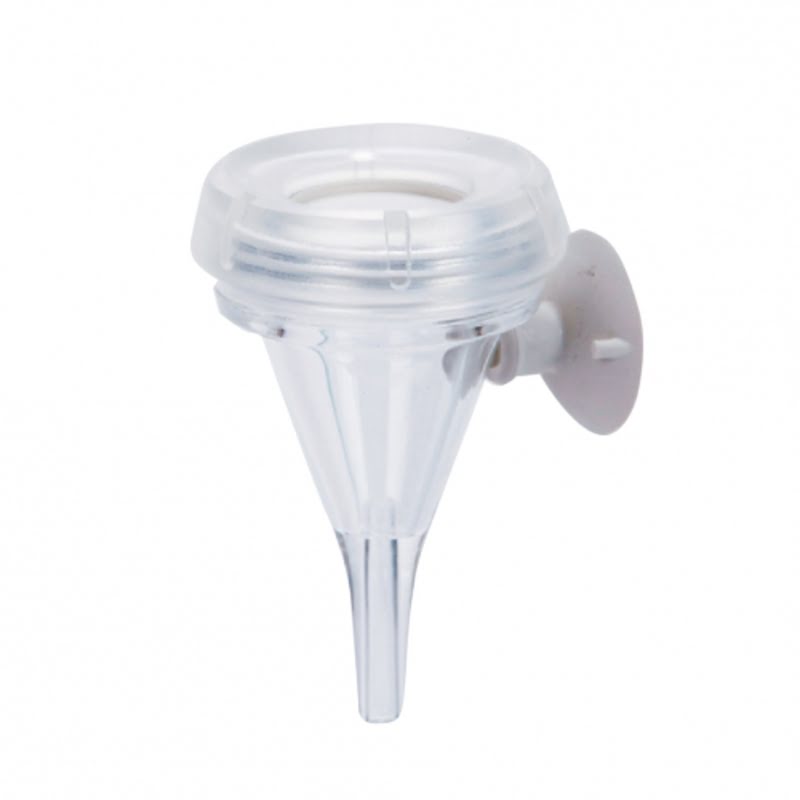

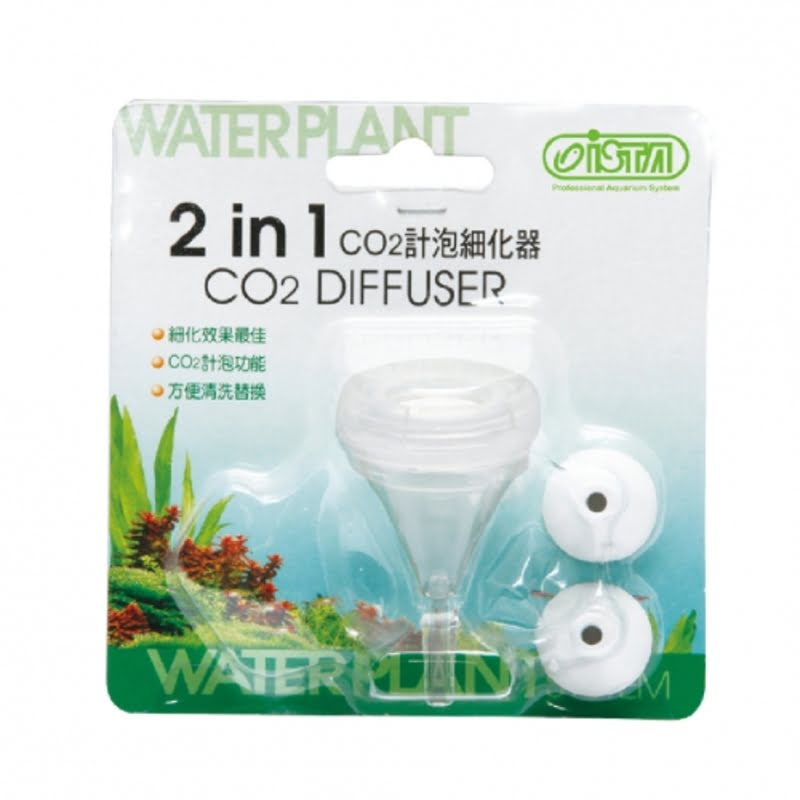

What ISTA publish for the I-503 2 in 1 CO2 Diffuser M:

Function two in one — CO2 bubble counter and diffuser in one body
Diffuser ceramic
Body acrylic — acid resistant and breakage resistant, and clear enough to read the bubbles through
Size in the range M

ISTA sell four in this family: the I-685 cone S, the I-686, the I-503 M and the I-502 L. They are the same idea at different sizes.

What ISTA do not publish for this model:

• Dimensions and diffuser disc diameter
• The aquarium size or CO2 flow each size is rated for
• Maximum working pressure
• Reservoir capacity

Those rows are simply not on ISTA’s specification sheet or in their catalogue, and we would rather leave them blank than print a number we cannot source. If one of them decides your purchase, ask us and we will measure the stock item before you order.

Compatibility

It needs a regulator upstream of it, and a check valve. This is the far end of a CO2 line: cylinder, regulator or controller, check valve, then this. ISTA’s own instructions for the L size specify connecting a CO2 pipe with a check valve attached, and that is good practice for all of them.

It replaces a separate bubble counter. The counter is built into the body, so if you buy this you do not also need an in-line counter — though you still need the check valve, which this does not include.

Ceramic diffusers want pressure. Pushing CO2 through a fine ceramic disc takes more pressure than an open line does, which is why these are paired with pressurised cylinder systems rather than with a DIY yeast bottle. If your source is a low-pressure one, the disc will simply not mist.

ISTA publish no tank-size rating for any size in this family, so the S / M / L labels are relative to each other rather than tied to a litre figure. As a working rule the larger disc suits the larger tank, and we are happy to advise against your specific volume.

A CO2 pipe holder is included, and ISTA’s stated reason for it is to stop the CO2 pipe kinking where it turns down into the diffuser. A kinked line throttles the gas and makes a bubble count meaningless, so fit it rather than leave it in the bag.
