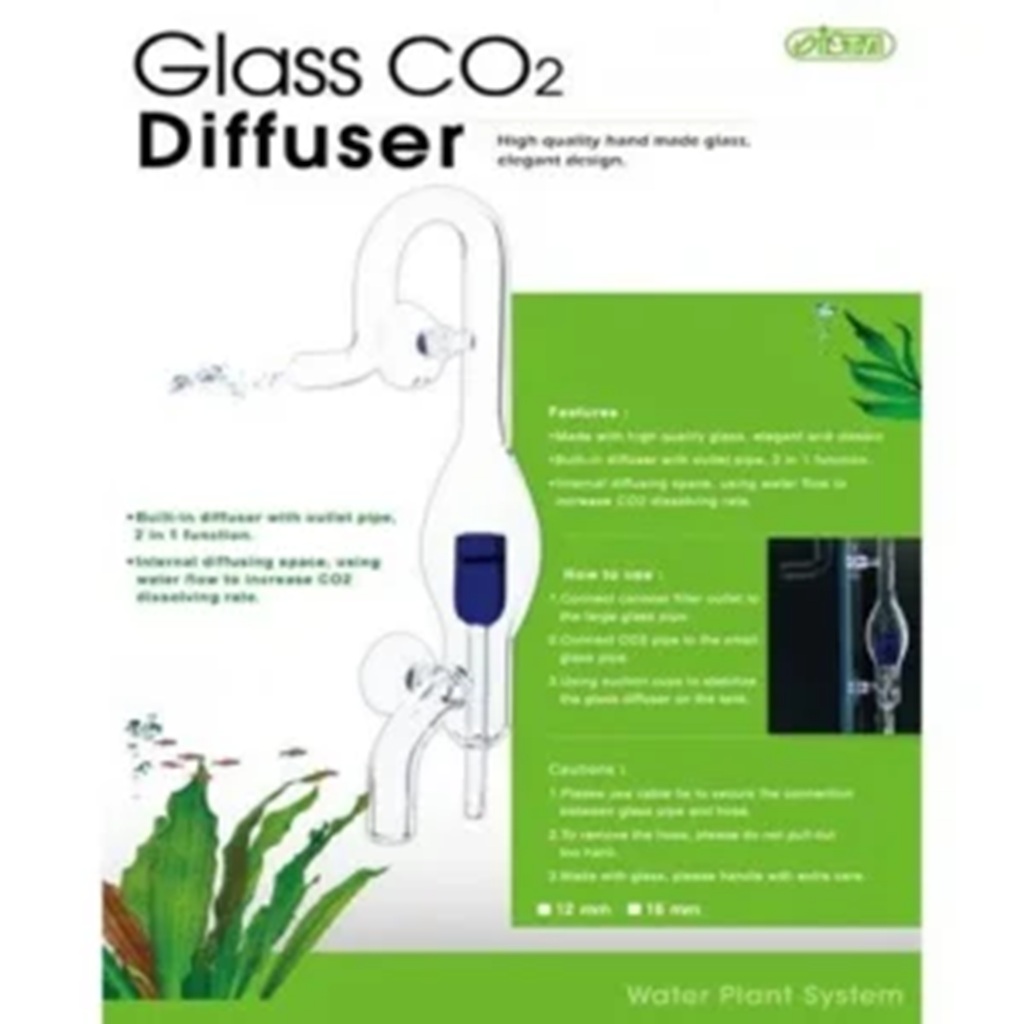

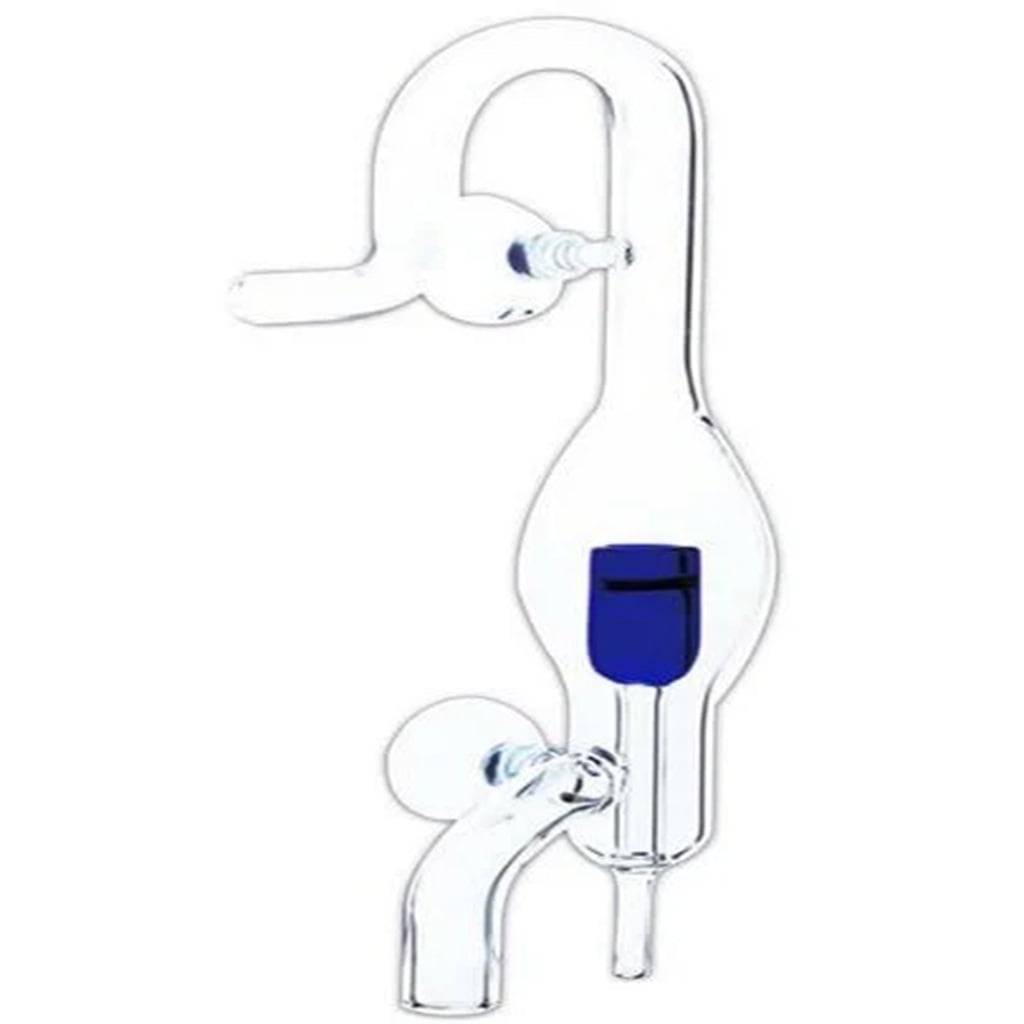

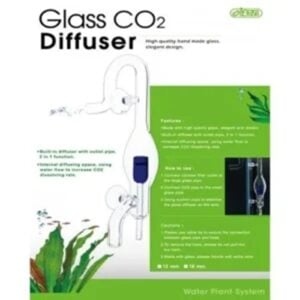

ISTA Glass CO2 Diffuser 16 mm

• Made with High Quality Glass, elegant and classic.
• Built-in diffuser with outlet pipe. 2 in 1 function.
• Internal diffusing space, using water flow to increase CO2 dissolving rate.
• Two sizes (12mm and 16mm) to fit every Canister outlet.

Compatibility

It fits 16 mm hose. ISTA make the Glass CO2 Diffuser in exactly two sizes — IF-561 for 16 mm and IF-560 for 12 mm — and those are the two common canister-filter hose diameters. Measure the hose on your filter’s outlet before you order, because the two are not interchangeable.

It goes in-line on the filter’s outlet, not on the intake. The whole design depends on the filter’s return flow carrying the mist into the tank; on the intake side you would be feeding CO2 into the filter body, where it collects as an air pocket and kills the impeller’s prime.

You still need a regulator and a check valve upstream. This is the diffusing end of a CO2 line and nothing else: no counter, no valve, no pressure control. Cylinder, regulator or controller, bubble counter, check valve, then this.

ISTA describe it only as high quality hand-made glass, with no published dimensions, no ceramic disc diameter and no tank-size rating. Hand-made is also why two units of the same article number are not identical to the millimetre.

Treat the glass as glass. Warm the hose end in hot water before pushing it on, secure the joint with a cable tie, and cut the hose off rather than pulling it when the time comes to remove it.
