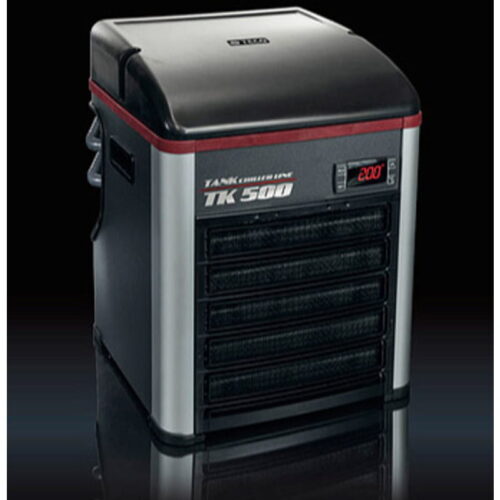

Teco TK 500 Chiller

MADE IN ITALY design and production.

EFFICIENT COOLING TECHNOLOGY

• The exclusive use of high-quality compressors and of the titanium coaxial heat exchanger, ensures high performance and low energy consumption. The set of technologies used allows you to decrease noise levels and achieve the highest COP (Coefficient Of Performance) contributing to significant energy savings.

DIGITAL THERMOSTAT

• Intuitive setting of functions and accurate temperature detection, resolution 0.1°C/0.2°F. The setting range is 5°-35°C (41°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms.

EFFICIENT DESIGN

• The chiller, with its innovative design, is characterized by a solid structure designed to guarantee a perfect protection against rust. The functionality of the shape and the compact size are also suitable for confined spaces.

UNIQUE FEATURE

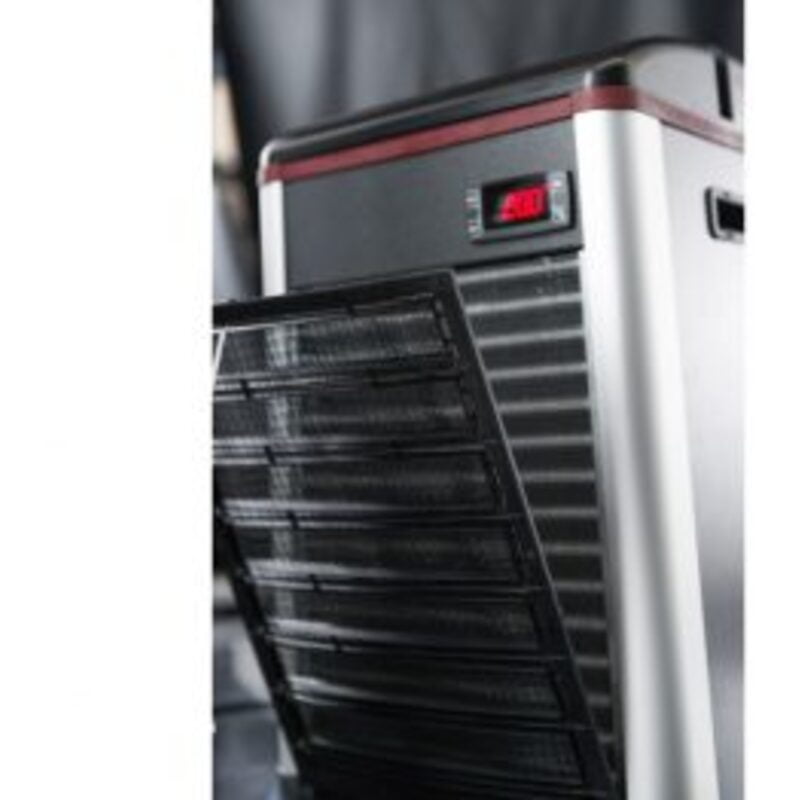

• The innovative TECO air SYSTEM (Figure 1) makes it possible to rotate the conveyor, thus ensuring optimal air exchange for the chiller and heat output from the cabinet. Quick and easy magnetic air filter maintenance. Moreover, the innovative “pinch off plier” allows easy removal of the chiller for maintenance. The standard built-in heater ensures continuous and optimal maintenance of temperature in all use conditions.

Technical Details

Supply		230V-50Hz (others supplies available on quantity)
Cooling Power Consumption		225 w
Ecological Refrigerant		R134a
Min. & Max Flow Rate		400 lt/h – 800 lt/h
Tank Size		up to 500 lt (water temp. 25°C – Room temp. 30°C – Heating load 0,5 w / lt)
Dimensions		mm. 310 x 310 x 416 (h)
Dimensions		in. 12.2 x 12.2 x 16.38 (h)
Weight		16,5 kg
Connections		fitting 3/4″ – 16mm int. tube diameter

Brand

Teco

High technology, low consumption, high quality materials, efficiency over the standard, safety These are only some of the features of well world wide known TECO products. The experience of many years of researches focused on the refrigeration field has allowed the creation of new generation cooling units with high performances but also with considerable energy savings for environment protection. TECO constantly research new solutions to let its products be unique, efficient,high quality and environment friendly as always.
