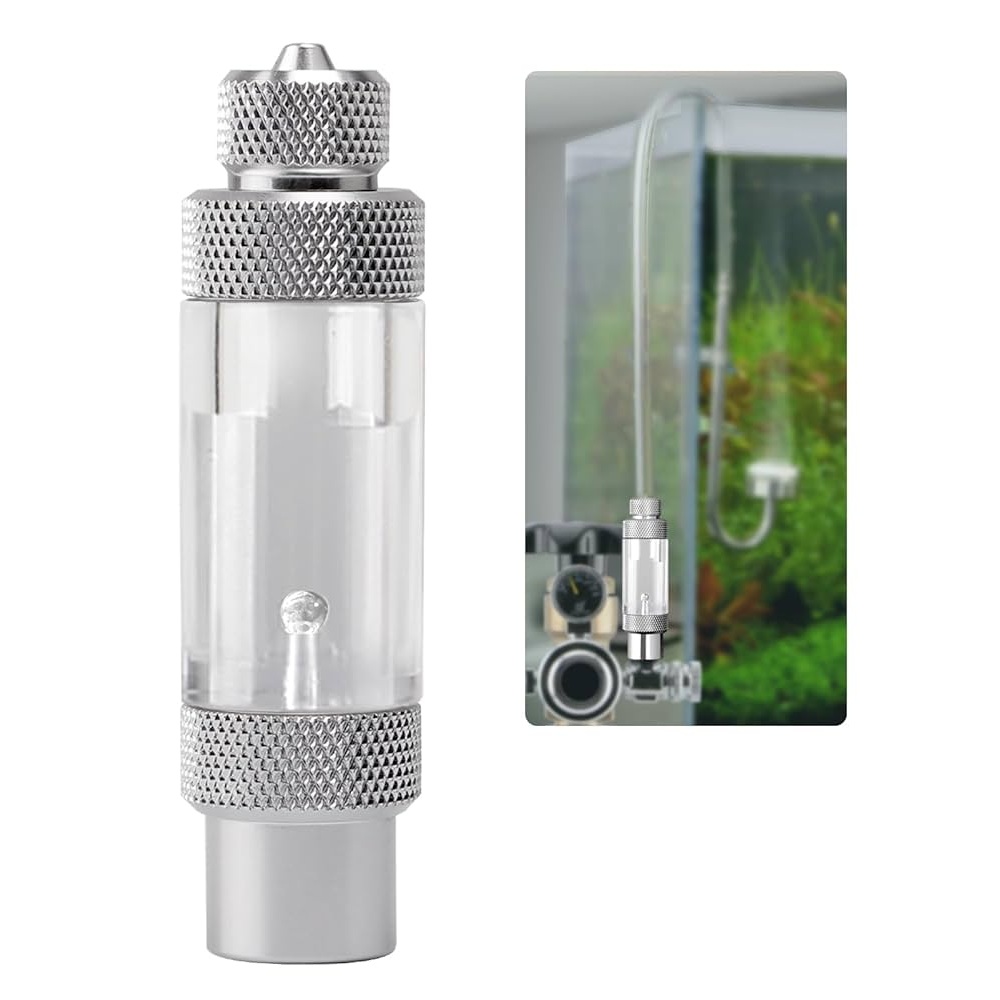

The ISTA Bubble Counter and Check Valve combines two CO2 line essentials in one metal fitting — a bubble counter for dialing in CO2 injection rate and a stainless steel check valve to stop water from siphoning back into the regulator. Part of the CO2 Diffusers range at IndieFur.

ISTA Bubble Counter and Check Valve — Details

• Made of durable material assures long usage time.
• 2 functions in 1 product, CO2 bubble counter and check valve.
• Stainless steel check valve effectively prevents water back flow.

Product Feature

• Metal and durable material allows longer operation life.
• Contains CO2 bubble counter and check valve.
• Stainless steel spring check valve effectively prevents backflow.
• For Metal CO2/Air Flow Regulator- 6ways, 3ways,or controller.

Specifications

What ISTA publish for the I-531 2-in-1 Metal Bubble Counter & Check Valve:

Function two in one — CO2 bubble counter and check valve
Body metal, for a longer operating life than acrylic
Check valve stainless steel spring type

ISTA sell an acrylic equivalent, the I-566, alongside this one. The metal body is what you are paying the difference for: acrylic bubble counters craze and go cloudy with age, and a cloudy bubble counter is a bubble counter you cannot read.

What ISTA do not publish for this model:

• Dimensions and weight
• Hose or thread size
• Reservoir capacity
• Maximum working pressure

Those rows are simply not on ISTA’s specification sheet or in their catalogue, and we would rather leave them blank than print a number we cannot source. If one of them decides your purchase, ask us and we will measure the stock item before you order.

Compatibility

ISTA specify it for their metal CO2 and air flow regulators — the 6-way and 3-way units — and for their controllers. That is their own wording, and it covers the I-643 and I-580 CO2 controllers and the I-648 pressure-reduced regulator.

It goes between the regulator and the diffuser, and it is not redundant with a 2-in-1 diffuser that has its own counter. If your diffuser already counts bubbles, what this adds is the stainless check valve; if your diffuser is a plain ceramic, this adds both.

ISTA do not publish a hose size for it. Standard CO2-resistant tubing is what these are built around, but ask us before ordering if you are matching it to a line you already have.

Setup & Use

Direction matters, and it is the one thing people get wrong. A check valve is a one-way device. Fit it with the flow arrow pointing away from the regulator and towards the tank. Backwards, it stops the CO2 instead of stopping the water.

Fill the counter, do not flood it. The reservoir takes water — distilled or RO if you have it, because tap water leaves scale on the sight glass. Filling roughly half way gives you a clear column of bubbles to count. Filled to the top there is nothing to see.

Mount it upright and somewhere you will actually look at it. A bubble counter behind the cabinet door is a bubble counter you check once a month. Its whole value is that it turns an invisible gas flow into something you can read in two seconds.

Count over a fixed interval. Bubbles per second is the usual unit, but counting for ten or fifteen seconds and dividing is far more accurate than trying to judge one second by eye.

Top the water up when it drops. CO2 slowly carries the reservoir water away. An empty counter still passes gas — it just stops counting, which is the failure mode you notice last.

Safety & Precautions

The check valve is the part protecting your regulator, so treat it as a consumable. Its job is to stop tank water siphoning back up the CO2 line when the gas stops, which is what happens every night on a solenoid setup. A check valve that has stopped sealing gives no warning at all until water reaches the regulator, so replace it if you ever see water on the wrong side of it.

Depressurise before you open anything. Close the cylinder valve and let the line vent before you unscrew the counter to refill or clean it. There is stored pressure in that line.

Do not run it dry as a check valve substitute. The bubble counter and the check valve are two mechanisms in one body; the counter running empty does not disable the valve, but a unit that has been run dry and dirty for months is one you should be testing rather than trusting.

Clean with water only. No solvents on the seals, no detergents left inside a component that feeds your tank.

What’s in the Box

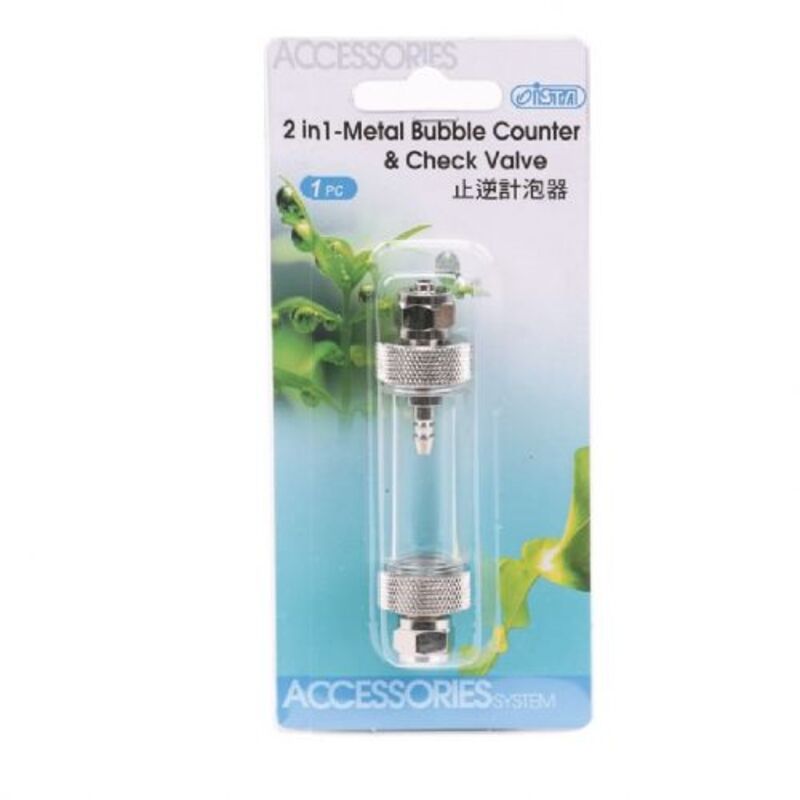

• The 2-in-1 metal bubble counter and check valve, as one assembled unit

No hose, no fittings and no reservoir fluid — you fill it with water yourself. ISTA sell the CO2 pipe, the pipe holder and the diffusers separately.

ISTA publish no itemised scope of delivery for this product; the list above is assembled from their own product page and catalogue entry. If something is short in the carton, tell us inside the 7-day return window and we will sort it out.
