₹ 43,499
₹ 43,499

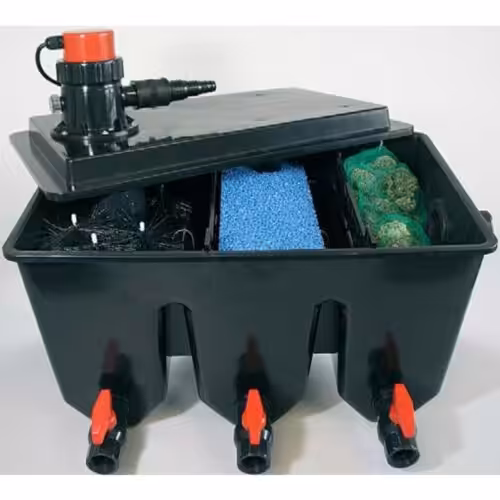

The Best Filtration from Germany to Your Doorstep. TFS Pond Filter System · Multiple Chamber-filters with Up-Flow-Technology · Separately removable filter media baskets for easy cleaning · Ball-valves at every chamber · Complete filter systems with pump and UV-C Head Beautiful, Clear Water and optimal living conditions for animals and plants. Our effective multiple chamber filter system for ponds up to 15.000 liters saves both with the “double” effect of UV-C radiation and biologic mechanical filtration.
All Filter Media Included. Messner TFS Pond Filter System Catalog
| Pond Filter System max. pond water volume | TFS 5000 | TFS 10000 | TFS 15000 | |
| Unplanted fish ponds | 3.000 l | 5.000 l | 8.000 l | |
| Planted fish ponds | 4.000 l | 7.000 l | 10.000 l | |
| Planted ponds | 5.000 l | 10.000 l | 15.000 l | |
| Dimensions L x W x H | 600 x 390 x 380 mm | 900 x 390 x 380 mm | 1.200 x 590 x 480 mm | |
| with UV-C Head | 600 x 390 x 530 mm | 900 x 390 x 530 mm | 1.200 x 590 x 630 mm | |
| Connection | ||||
| Inlet (UV-C) | G 1˝- E Ø 20/25/32 | G 1˝- E Ø 20/25/32 | UV-C Hose nozzle G 1˝- E Ø 20/25/32 | |
| Outlet | Ø 50 mm | Ø 50 mm | Ø 75 mm | |
| Dirt release | 2 x Drain ball-valve G 1˝- I | 3 x Drain ball-valve G 1˝- I | 3 x Drain ball-valve G 1˝- I | |
| Scope of delivery | ||||
| · Pond Pump | · System M 2101 | · System M 3500 | · System M 4500 | |
| · UV-C Head | · 9 watts PL | · 11 watts PL | · 18 PL | |
| · Number of modules | · 2 x | · 3 x | · 3 x | |
| · Number of covers | · 2 x | · 3 x | · 3 x | |
| · Number of filter baskets | · 1 x | · 2 x | · 2 x | |
| · Filter media | · 6 x Filter brushes 1 x Filter granules 15 liter | · 6 x Filter brushes 1 x Filter sponges 1 x Filter granules 15 liter | · 10 x Filter brushes 1 x Filter sponges 2 x Filter granules 15 liter | |
| Art.-No. | 162 / 002445 | 162 / 002446 | 162 / 002447 | |
| Refill filter brushes Art.-No. | 6 x 162 / 002431 | 6 x 162 / 002431 | 10 x 162 / 002470 | |
| Refill filter sponges Art.-No. | 1 x 162 / 002474 | 1 x 162 / 002475 | ||
| Refill filter granules Art.-No. | 1 x 162 / 002413 | 1 x 162 / 002413 | 2 x 162 / 002413 | |
