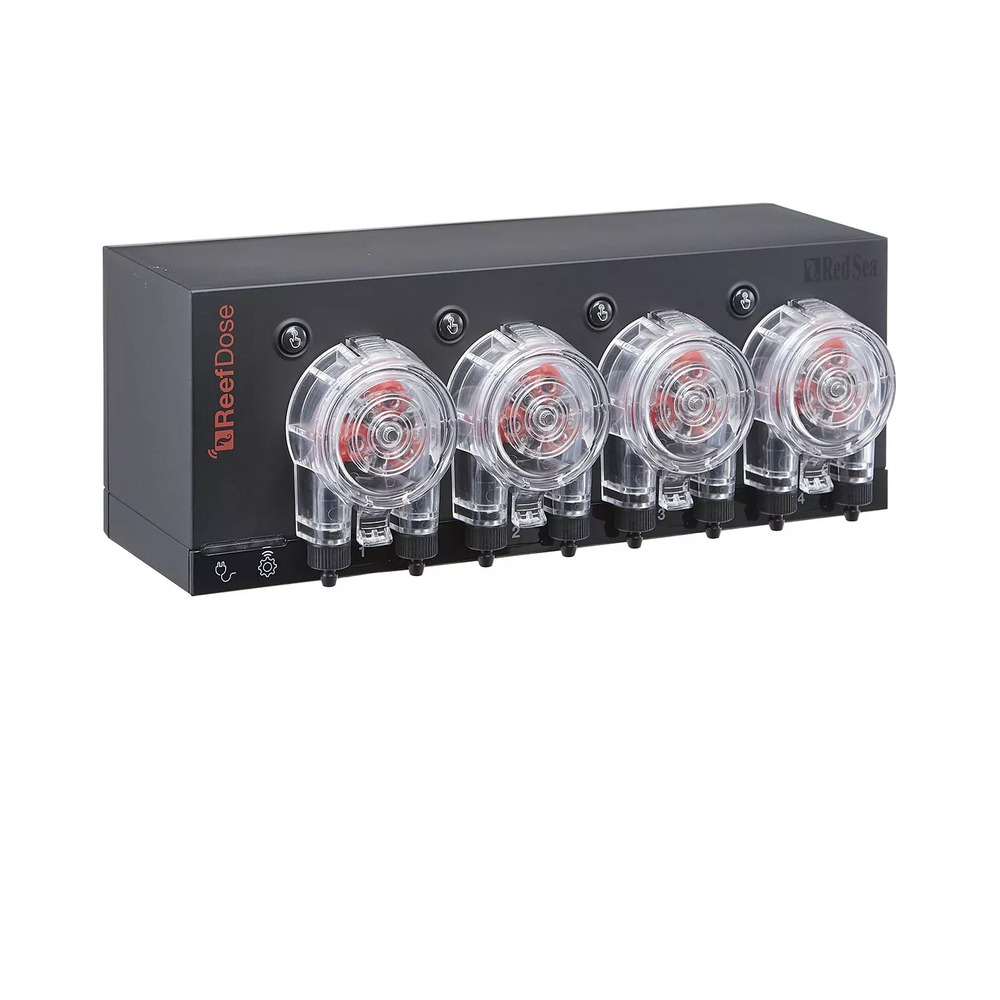

Red Sea’s highly-anticipated ReefDose redefines ease-of-use and smart functionality for aquarium dosing pumps, offering advanced programming and incredible dosing accuracy for the most demanding applications. The ReefDose doser was built from the ground up to meet the needs of modern reef aquarists. Utilizing Red Sea’s custom-built dosing heads, the ReefDose is capable of delivering incredible single-drop precision through a variety of dosing programs. The three dosing speed settings offer additional versatility, prioritizing whisper quiet operating at up to 15mL per minute, all the way up to 45mL per minute with Turbo mode.

Features

• Single drop accuracy dosing heads with a direct-drive planetary gear-motor, provides an accuracy of ± 0.05ml or an average deviation of 0.5% (over 10ml).
• 4 easy-set, smart dosing options for each head, that are automatically combined into one coordinated schedule.

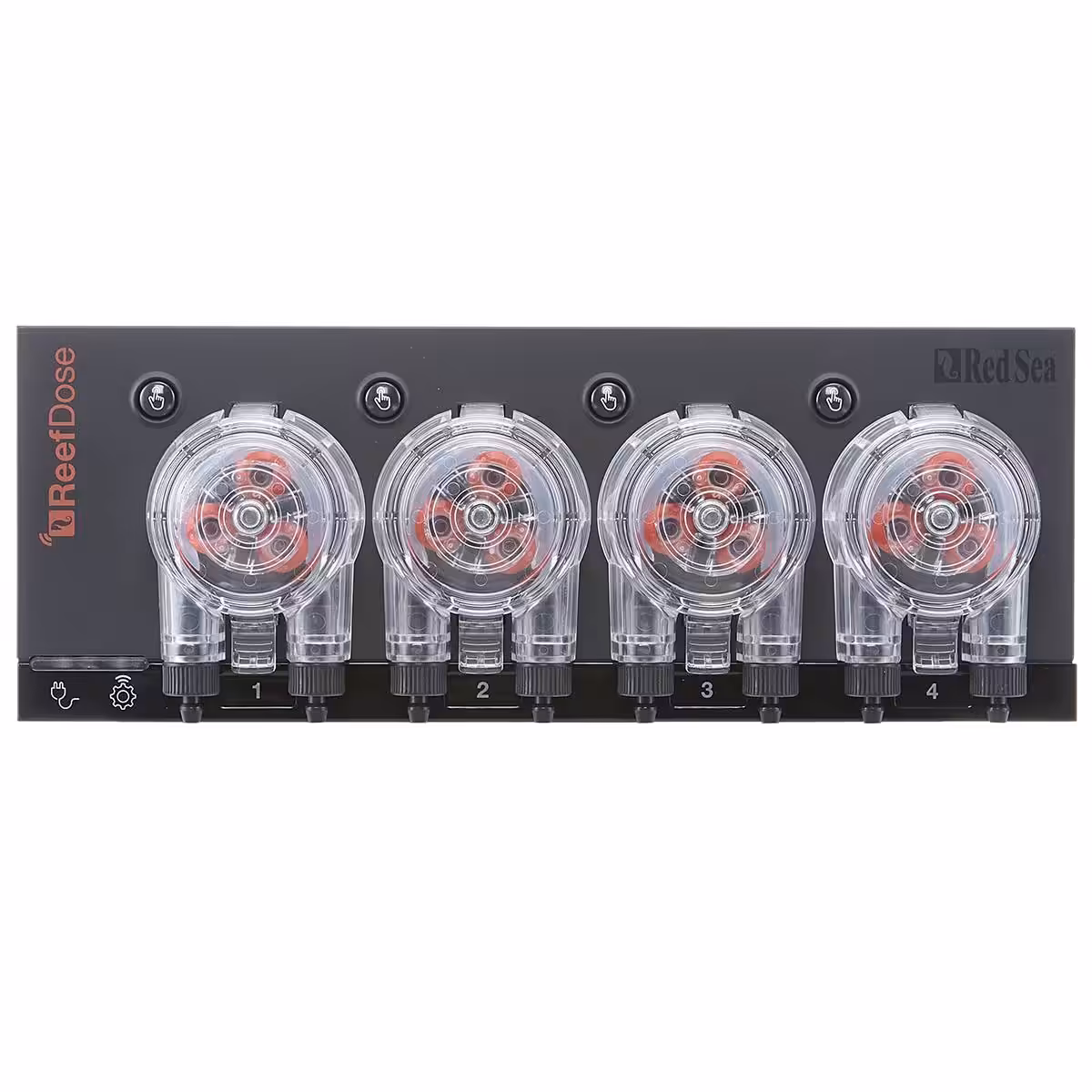

• Easy assembly click-on/off dosing heads (no tools or alignment required).
• Automatic delay between the heads to prevent chemical interaction between supplements.
• Automatic dose compensation for doses missing due to power loss.
• Daily dose per head of 0.2ml up to 1000ml in increments of 0.1ml.
• On-demand manual dosing.
• 3 dosing flow rates: Whisper 15ml/min, Regular 30ml/min, Turbo 45 ml/min.
• Motor life expectancy of 10 years – based on 250ml/day/head.

The ReefDose is more than just another programmable dosing pump. Smart software functionality like the “Dynamic Dosing Queue” run by the controller combines the desired dosing plans for each head into one coordinated daily dosing schedule for the complete device. The queue is automatically updated after any settings changes, and reschedules any doses that are missed due to unscheduled events such as power outages, maintenance, or feeding.

ReefBeat App

The ReefDose is also part of the Red Sea smart ecosystem, integrating with other ReefBeat devices. With programming through the ReefBeat App, the ReefDose can be programmed for multiple automated dosing setups, or set up for individually customized dosing schedules. Through ReefBeat, you can schedule dosing programs to run every day, or only on selected days, with daily doses ranging from once per day to once per hour.

• Automatic rescheduling after changes in dosing schedule or number of doses.
• Dose Queue presents coordinated list of doses scheduled for all heads.
• Dose Log keeps a record of supplement volumes per hour for up to 30 days.
• Peace of Mind – Receive notifications and alerts of missed doses and more.
• Volume monitor keeps tabs on when reservoirs need to be refilled.
• Set a dosing head to “Food Head” and use it to dose liquid foods.

Specifications

What Red Sea publish for the ReefDose 4:

Dosing heads 4
Dimensions 22.5 × 10.5 × 8.5 cm (8.9″ × 4.1″ × 3.4″)
Operating temperature 5 to 45 °C
Relative humidity 15–85 % RH
Supply 100–240 V, 50/60 Hz, 1 A, 10 W max
Operating voltage 12 Vdc
Wireless 2402–2480 MHz, 32.43 mW max

Daily dose per head 0.2 ml to 1,000 ml in 0.1 ml steps, split over up to 24 doses a day; the smallest single dose is 0.2 ml. Dosing rates are Whisper about 15 ml/min, Regular about 30 ml/min and Turbo about 45 ml/min.

Calibration check: after calibrating a head the app gives a confirmation dose of exactly 4 ml, which should measure between 3.95 and 4.05 ml. Outside that, the calibration is repeated.

What Red Sea do not publish for this model:

• A weight for the unit
• A noise figure in dB
• A rated service life for the dosing heads themselves (only the internal tube has a stated replacement interval)

Those rows are simply not on Red Sea’s specification sheet or in the manual, so we have left them blank rather than fill them in. If one of them decides your purchase, ask us before ordering and we will put the question to Red Sea.

What’s in the Box

Red Sea do not print an itemised scope of delivery for this product. The list below is built from the parts and components named in Red Sea’s own manual for it. If something on it is missing from your carton, tell us and we will take it up with the distributor.

• ReefDose 4 unit with four click-on dosing heads

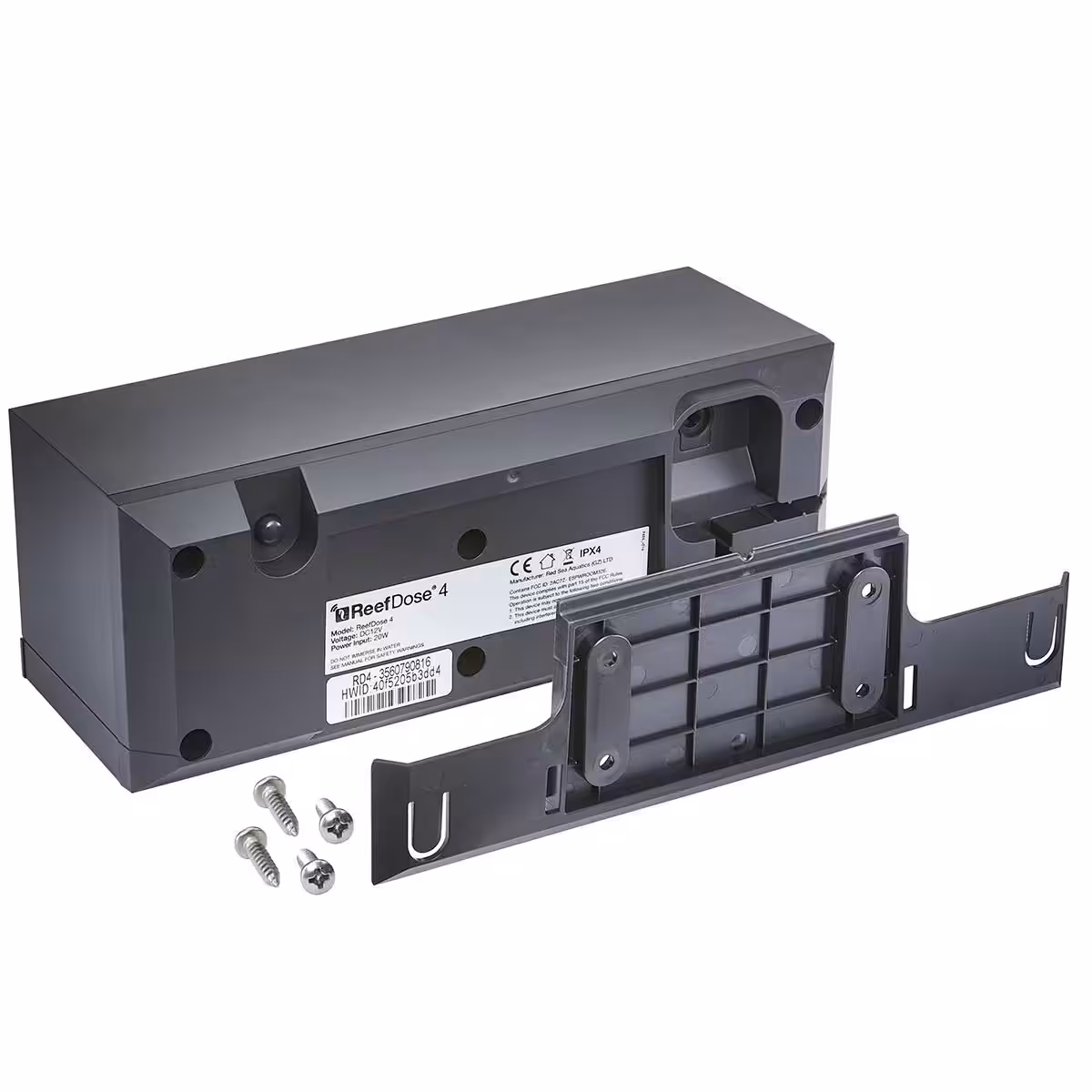

• Mounting bracket
• Laboratory-grade measuring cylinder for head calibration, graduated every 0.1 ml
• TPE dosing tubing
• Power supply

Compatibility

Tubing. The inlet and outlet hose barbs and their lock nuts are sized for flexible tube of roughly 3 mm (1/8″) internal and 5 mm (3/16″–1/4″) external diameter. Red Sea strongly recommend air-impermeable TPE tubing of the kind supplied with the unit — ordinary silicone airline lets air through and will degrade dosing accuracy.

Where it can go. The ReefDose is splashproof but not waterproof, and is designed to live inside an aquarium cabinet. It should not be mounted directly above open water. Screw the supplied bracket to any vertical surface — Red Sea specifically advise against self-adhesive pads — or stand the unit on a flat surface on its bottom, top, back or either side, provided the dosing tubes are not pinched.

Outlet tubes are secured above the sump. Supplements are dosed into the sump, not into the display.

This is a ReefBeat device. Full functionality needs Red Sea’s free ReefBeat app on an Android or iOS phone or tablet, a home Wi-Fi network and a live internet connection. Without internet you can still run it in Offline or Direct mode, but remote access, control from more than one device and status notifications are not available.

Safety & Precautions

• Indoor use only. Use only the power supply that came with the unit — a supply rated for fewer watts than the appliance can overheat.
• Do not run the unit if the cord or plug is damaged, if it is malfunctioning, or if it has been dropped. Do not attempt a cord repair yourself; return it for service or discard it.
• Leave a drip loop in every cord — the low point of the cable must sit below the socket so water running down the cable drips off rather than reaching the outlet. If a plug or socket does get wet, do not unplug it: kill the circuit at the breaker first.
• Unplug before fitting or removing parts and before cleaning. Pull the plug, never the cord.
• Keep children away from the equipment, and do not touch moving parts while it is running.
• Do not install or store it where it will be exposed to weather or to temperatures below freezing.
• Splashproof is not waterproof. Do not mount it over open water.
• Recalibrate a head every time you replace its internal dosing tube — the calibration is specific to that tube.
• Replace the inner tube of each head about once a year to keep the calibration honest, and only with an original ReefDose dosing tube assembly complete with hose barbs. The length and diameter of that tube are critical to how the head meters, and the tube is lightly greased in the factory.
• Damage to the internal dosing tube is a wear item and is excluded from Red Sea’s warranty.
• Red Sea build in an automatic delay between heads so two supplements never land in the water together. The minimum is 15 seconds (the default) and the maximum is 5 minutes — do not set it to the minimum with supplements that react.
• There is a 3 V CR1220 lithium cell inside that keeps the clock running through a power cut. It needs replacing every few years.
• Do not overtighten the lock nuts on the hose barbs.
